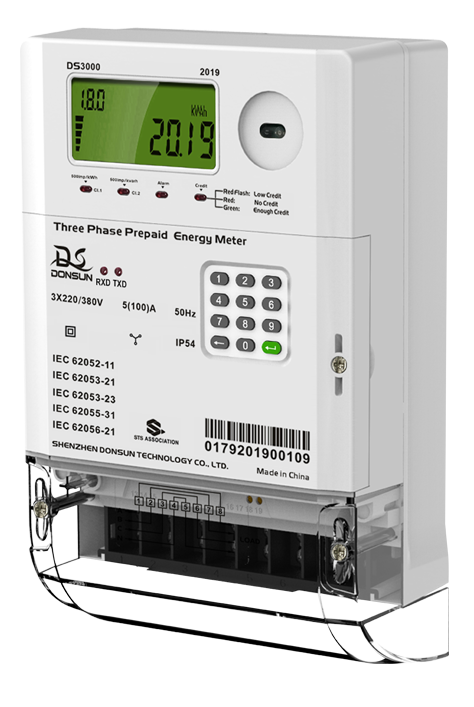

DS3000(M)
The DS3000(M) provides modular communication platforms, including GSM/GPRS, PLC and Low Power Radio for WAN/LAN communications.
The DS3000(M) is a highly accurate, robust, system ready meter that is ideally suited for commercialand light industrial metering applications.
Description
DS3000(M)
The meter adopts the latest STS standards for prepayment, with variant to accommodate the CTS configuration used in some countries.
Suitable for residential
consumer scenarios
consumer scenarios
Greatly reducing the possibility
of manual meter reading errors
of manual meter reading errors
High security and detects many
of the most commonly
used tamper techniques.
of the most commonly
used tamper techniques.
Basic Feature
Accuracy Class 1.0
to IEC 62053-21
to IEC 62053-21
Standard IEC 62055-31
for STS prepayment
for STS prepayment
Unidirectional or bi-directional
measurement
measurement
15 years' service life

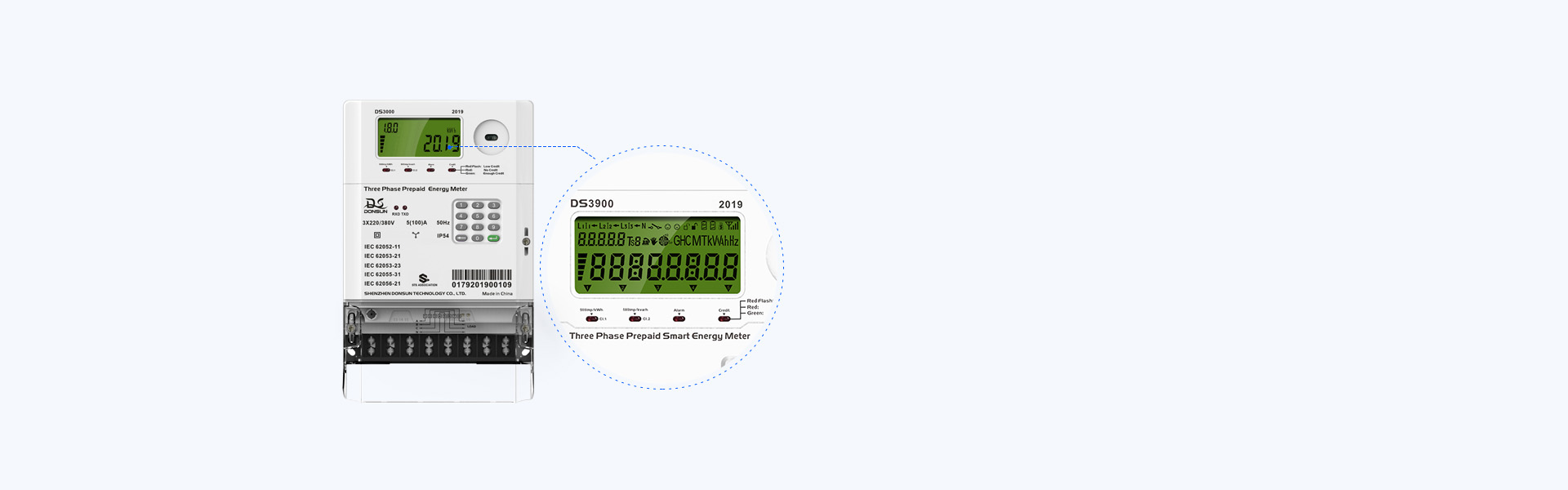

Large digit multilingual display
with OBIS infomation indication
with OBIS infomation indication
Extensive security data
High security,
compact design
compact design
DIN double insulated,
glass filled polycarbonate case
glass filled polycarbonate case
Rate select for two
rate meters,swith to neutral
rate meters,swith to neutral
IP54 in accordance with
IEC 60529:1989
IEC 60529:1989
Additional Feature
DS3000(M) offers high security features including main and terminal coverremoval detection and magnetic field manipulation detection protect the meterand module from fraud or tampering.
Security
DS3000(M) provides modular communication platforms, including GSM/GPRS, PLC and Low Power Radio for WAN/LAN communications.Options for HAN communications can be included each as M-Bus or ZigBee.
Data Storage
The DS3000(M) offers multiple anti-tampering and advanced security features that ensures revenue protection for our customers. The site diagnostic capability continuously monitors the service, verifying that all phases are present and that the wiring configuration is correct. Adverse or abnormal conditions, such as phase outages and reverse energy events, are logged.
Display
DS3000(M) offers high security with varioususeful security features. The meter stores allregistration and configuration data to nonvolatilememory. All data is retained for the lifeof the meter. Recordable security features areprovided.

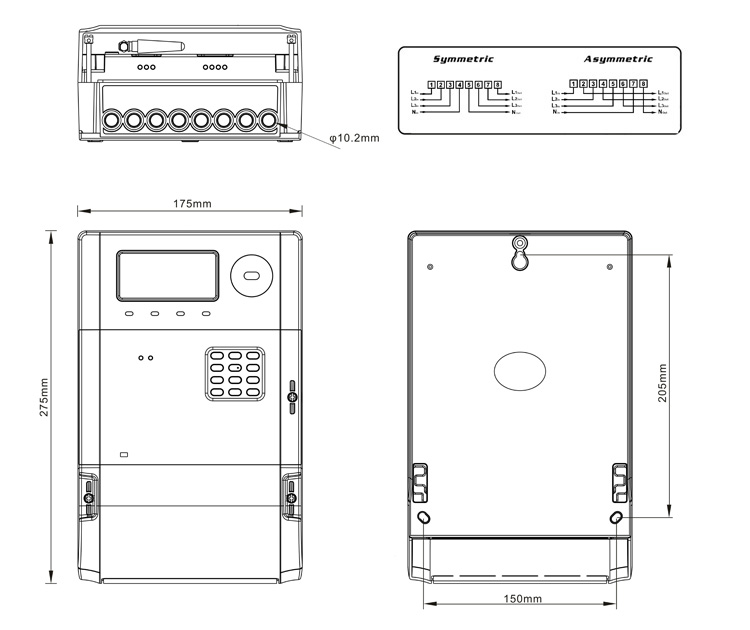

Chart
Specifications
Tariff Structure
Download file
Item
Description
Network
3 Phase 4 Wires network
Accuracy class
Class 1.0
Reference voltage
Range 70%-120%Un
Temperature
Operation: -40° to +55°C Storage: -40° to +85°C
Communication
Local: Optical
